Modern Stucco & EIFS Exterior Solutions
We help homeowners, builders, architects, and property managers create durable, energy-efficient, and beautiful exterior wall systems.
United Stucco
Built for Beauty, Protection, and Performance
United Stucco provides professional stucco, EIFS, exterior insulation, acrylic finishes, repairs, and façade upgrades across residential, commercial, and institutional projects. Our work focuses on clean details, long-lasting protection, energy efficiency, and curb appeal.
EIFS Education
What is EIFS?
EIFS — Exterior Insulation and Finish System — is a non-load-bearing exterior wall cladding system that combines insulation, moisture management, and a decorative finish in a single integrated assembly.
Unlike traditional three-coat stucco, which is applied directly over the wall surface with no insulation layer, EIFS positions rigid foam insulation on the exterior side of the wall assembly. This placement is critical: it eliminates thermal bridging through structural framing, creating a continuous thermal envelope that significantly improves a building's energy performance.
Modern drainage EIFS systems go further — adding an engineered drainage cavity between the insulation and the substrate to manage incidental moisture. This drainage layer addresses the primary concern associated with earlier barrier EIFS systems, making today's drainage EIFS a high-performance and code-recognized cladding choice.
System Layers · Inside Out
01
Substrate & Sheathing
The existing or new wall structure — wood frame, steel stud, masonry, concrete, or ICF. Properly prepared and confirmed sound before application.
02
Air & Water Barrier
A continuous weather-resistant barrier (WRB) that controls air movement and moisture infiltration at the wall surface.
03
EPS Insulation Board
Rigid expanded polystyrene (EPS) insulation, adhered and mechanically fastened. This is the thermal core of the system — continuous coverage with no thermal bridging through framing.
04
Base Coat + Reinforcing Mesh
A polymer-modified cement base coat is applied over the insulation, with fibreglass reinforcing mesh embedded for impact resistance and structural integrity.
05
Finish Coat
An acrylic or silicone textured finish coat in the selected colour and texture. This is the visible exterior surface — available in hundreds of textures, tones, and architectural finishes.
Performance Benefits
Why Choose EIFS?
EIFS is specified by architects and chosen by building owners because it delivers thermal performance, moisture resilience, and design freedom in a single cladding system — at a weight and cost that outperform many alternatives.
R-5 to R-22
Insulation range available
Continuous
No thermal bridging through framing
Drainage
Modern GDDC moisture management
Continuous Exterior Insulation
EIFS wraps the full building envelope without gaps or interruptions. Unlike interior batt insulation, there is no thermal bridging through studs, significantly improving real-world energy performance.
Energy Performance
Reduced thermal bridging and continuous R-value support energy code compliance under OBC and NBC. Buildings with EIFS often demonstrate measurable reductions in heating and cooling demand.
Moisture Management & Drainage
Modern drainage EIFS systems include a defined cavity between the insulation and the substrate, allowing any water that enters to drain down and exit — a fundamental improvement over earlier barrier-only systems.
Design Flexibility
Hundreds of textures, colours, and architectural finishes — sand, dash, stone, smooth, rustic, and more. Reveals, trims, cornices, bands, columns, and custom shapes can be integrated into the system.
Retrofit-Friendly
EIFS can be installed over sound existing substrates — including older stucco — without full tear-off. Retrofit applications can modernize the appearance of an older building while improving thermal performance in one scope of work.
Lightweight System
EIFS is significantly lighter than brick or stone veneer. This reduces structural loading, simplifies installation on existing buildings, and can be applied to a broader range of substrates.
Installation Process
How EIFS Is Applied
EIFS installation is a sequenced, layer-by-layer process. Each phase must be completed to specification before the next begins. Proper substrate preparation, correct drainage detailing, and careful finish application are the foundations of a durable exterior.
Weather conditions play a role in scheduling — finish coats cannot be applied in freezing temperatures or heavy rain. Our project planning accounts for Ontario climate.
1
Step 01
Site Review & Substrate Assessment
We assess the existing wall assembly, substrate condition, and building details. Window and door transitions, penetrations, and existing moisture conditions are evaluated before any specification is finalized.
2
Step 02
Weather Barrier & Moisture Management
A continuous air and water barrier (WRB) is installed or verified on the substrate. This layer controls air movement and provides a secondary moisture defence. Flashing and drainage details are set at this stage.
3
Step 03
Insulation Board Installation
EPS insulation panels are adhered and mechanically fastened to the substrate. Panels are cut and fitted tightly around windows, doors, and penetrations. Insulation thickness determines the R-value of the assembly.
4
Step 04
Base Coat & Reinforcing Mesh
A polymer-modified base coat is applied over the insulation and fibreglass reinforcing mesh is embedded. Corners, edges, and high-stress zones receive additional reinforcement. The base coat is allowed to cure.
5
Step 05
Detail Work — Reveals, Trims, Cornices
Architectural details are formed and finished during base coat application. Reveals, shadow lines, decorative bands, cornices, and column wraps are installed as part of the system — not as separate trades.
6
Step 06
Finish Coat Application
The selected finish coat is applied in the specified texture and colour. Colour consistency is managed across all elevations. The finish coat cures to a weather-resistant, UV-stable exterior surface.
7
Step 07
Caulking, Sealants & Penetrations
All transitions, window and door perimeters, and building penetrations are sealed with approved caulking. This is a critical waterproofing step in the building envelope sequence.
8
Step 08
Final Walkthrough & Inspection
We walk every elevation with the client or general contractor. Any deficiencies are corrected before the job is closed. The scope is documented and complete.
Wall System Details
Three EIFS systems.
Each engineered for its application.
From wood-frame residential to non-combustible high-rise, DuROCK PUCCS drainage EIFS covers every building type with code-compliant, field-proven wall assemblies. United Stucco installs all three systems across Ontario.
Image: DuROCK Alfacing International
OBC Part 9
PUCCS Residential
Wood-Frame Low-Rise
Engineered for custom homes, townhomes, and low-rise multi-family buildings. Delivers continuous insulation outside the framing to eliminate thermal bridging, with a 10mm drainage cavity that satisfies both NBC and insurer requirements.
Drainage Cavity
10mm GDDC
Open Area
37%
CCMC Evaluation
#12969-R
Code Reference
NBC 9.27.13
Insulation
EPS (expanded polystyrene)
Application
Residential Part 9
Wall Assembly (Outside → In)
Wood Stud Framing38×89 or 38×140
Structural SheathingPlywood or OSB panel
WRB / Air BarrierLiquid-applied, vapour-permeable
EPS Insulation BoardGDDC-grooved · 10mm cavity · 37% open area
Base Coat + Fibreglass MeshPolymer-modified impact layer
Finish CoatAcrylic or silicone texture coat
Code & Standards
- ›CAN/ULC-S716.1
- ›NBC 5.9.4 / OBC 9.27.13
- ›CCMC #12969-R
Image: DuROCK Alfacing International
OBC Part 3
PUCCS Commercial
Steel Stud / Masonry · High-Rise
Designed for commercial buildings, institutional structures, and high-rise towers. Also available in an Over Brick variant for retrofit applications — apply directly over existing masonry without demolition.
Drainage Cavity
10mm GDDC
Open Area
37%
CCMC Evaluation
#12969-R
Code Reference
NBC 5.9.4
Insulation
EPS (expanded polystyrene)
Application
Commercial Part 3 / High-Rise
Wall Assembly (Outside → In)
Primary StructureSteel stud or concrete / CMU
Sheathing / SubstrateSteel stud sheathing or masonry
WRB / Air BarrierLiquid-applied membrane
EPS Insulation BoardGDDC-grooved · 10mm cavity · 37% open area
Heavy-Duty Base CoatStandard or dual-layer reinforcing mesh
Finish CoatArchitectural texture / colour
Code & Standards
- ›CAN/ULC-S716.1
- ›NBC 5.9.4 / OBC Part 3
- ›CAN/ULC-S134 (fire test)
- ›Available: Over Brick retrofit variant
Image: DuROCK Alfacing International
Non-Combustible
PUCCS NC
Mineral Wool · Fire-Rated
The only EIFS system in Canada using PUCC-ROCK virgin mineral wool insulation — non-combustible, code-compliant for high-rise buildings requiring NBC Article 3.1.5.5 fire performance. Patented GDDC groove pattern with dual reinforcing mesh for maximum impact resistance.
Insulation
PUCC-ROCK Mineral Wool
Air Space
10mm GDDC
Canadian Patent
3,021,416
US Patent
10,961,699
Fire Test
NFPA 285 / CAN/ULC-S134
Application
High-rise / Non-combustible
Wall Assembly (Outside → In)
Primary StructureSteel stud or concrete / CMU
Sheathing / SubstrateSteel stud or masonry
Liquid-Applied WRBAir-barrier · vapour-permeable · gasket around fasteners
PUCC-ROCK Mineral WoolVirgin wool · GDDC grooves · 10mm air space · face-marked @ 4"
Base Coat + Dual MeshTwo layers fibreglass mesh — enhanced impact
Finish CoatNon-combustible DuROCK finish
Code & Standards
- ›Canadian Patent No. 3,021,416
- ›US Patent No. 10,961,699
- ›NBC Article 3.1.5.5 (CAN/ULC-S134)
- ›NBC Article 3.2.3.8 (CAN/ULC-S101)
- ›ASTM E136 / CAN/ULC S114
3D wall section renderings sourced from DuROCK Alfacing International technical documentation. Consult current product data sheets and local building code for project-specific specifications.
For Architects & Specifiers
Why Architects Specify EIFS
EIFS is not simply a finish choice. For design professionals, it is a building envelope strategy that combines performance compliance, aesthetic control, and construction efficiency in a single cladding specification.
Energy Code Compliance
Ontario Building Code and the National Building Code increasingly require continuous insulation in the building envelope. EIFS delivers this through exterior foam insulation that eliminates thermal bridging through structural framing — something interior insulation cannot achieve.
Continuous Insulation
CI (continuous insulation) is now a recognized performance metric in energy modelling. EIFS provides a thermal break at the exterior, improving the effective R-value of the whole wall assembly and reducing the heating and cooling loads that drive energy costs.
Design Freedom
EIFS accommodates reveals, shadow lines, cornices, banding, quoins, columns, shaped mouldings, and custom architectural features as integral parts of the system. This allows architects to achieve a high level of aesthetic detail without separate cladding trades.
Clean Modern Exterior
The smooth or textured finish coat can achieve a refined appearance that brick, siding, or precast cannot easily replicate. EIFS supports the contemporary aesthetic that many commercial and institutional projects demand.
Building Envelope Coordination
EIFS integrates with air barrier, vapour control, and window/door detailing as part of a complete building envelope strategy. Experienced EIFS installers are familiar with envelope system sequencing and code-required detailing.
Broad Application Range
EIFS can be specified for wood-frame residential, steel-frame commercial, masonry and ICF construction, low-rise and mid-rise. The same visual language can be maintained across building types, supporting a unified design intent.
Cladding Comparison
EIFS vs Other Cladding Options
Every cladding system has merits. This comparison is intended to help clients and project teams understand where EIFS performs well, and where other systems may be appropriate. No single cladding is right for every project.
| Performance Factor | EIFS Drainage System | Traditional Stucco 3-Coat Applied | Brick / Masonry Veneer | Vinyl / Fibre Siding & Panels |
|---|---|---|---|---|
| Continuous insulation | Strong | Limited | Limited | Limited |
| Thermal bridging reduction | Strong | Limited | Limited | Limited |
| Energy code alignment | Strong | Moderate | Moderate | Moderate |
| Moisture / drainage layer | Strong | Limited | Varies | Limited |
| Retrofit capability | Strong | Moderate | Limited | Strong |
| Architectural design detail | Strong | Moderate | Moderate | Limited |
| Texture & colour range | Strong | Moderate | Limited | Moderate |
| Weight (structural load) | Strong | Good | Limited | Strong |
| Maintenance requirements | Good | Moderate | Good | Good |
| Modern building appearance | Strong | Moderate | Moderate | Moderate |
EIFS
Drainage System
Continuous insulation
StrongThermal bridging reduction
StrongEnergy code alignment
StrongMoisture / drainage layer
StrongRetrofit capability
StrongArchitectural design detail
StrongTexture & colour range
StrongWeight (structural load)
StrongMaintenance requirements
GoodModern building appearance
StrongTraditional Stucco
3-Coat Applied
Continuous insulation
LimitedThermal bridging reduction
LimitedEnergy code alignment
ModerateMoisture / drainage layer
LimitedRetrofit capability
ModerateArchitectural design detail
ModerateTexture & colour range
ModerateWeight (structural load)
GoodMaintenance requirements
ModerateModern building appearance
ModerateBrick / Masonry
Veneer
Continuous insulation
LimitedThermal bridging reduction
LimitedEnergy code alignment
ModerateMoisture / drainage layer
VariesRetrofit capability
LimitedArchitectural design detail
ModerateTexture & colour range
LimitedWeight (structural load)
LimitedMaintenance requirements
GoodModern building appearance
ModerateVinyl / Fibre
Siding & Panels
Continuous insulation
LimitedThermal bridging reduction
LimitedEnergy code alignment
ModerateMoisture / drainage layer
LimitedRetrofit capability
StrongArchitectural design detail
LimitedTexture & colour range
ModerateWeight (structural load)
StrongMaintenance requirements
GoodModern building appearance
ModerateNote: Ratings are general guidance based on typical system properties and are not a substitute for project-specific analysis. Performance will vary based on system design, installation quality, substrate conditions, and climate. United Stucco recommends consulting with our team to evaluate the appropriate system for your specific project.
Project Gallery
EIFS Applications Across Building Types
United Stucco has completed EIFS and exterior finish work across residential, commercial, institutional, and large-scale building types throughout Ontario. This gallery highlights the range of exterior applications we support — from custom homes and retrofit conversions to commercial plazas, dealerships, retirement residences, churches, gas stations, and high-rise properties.
Commercial Plazas

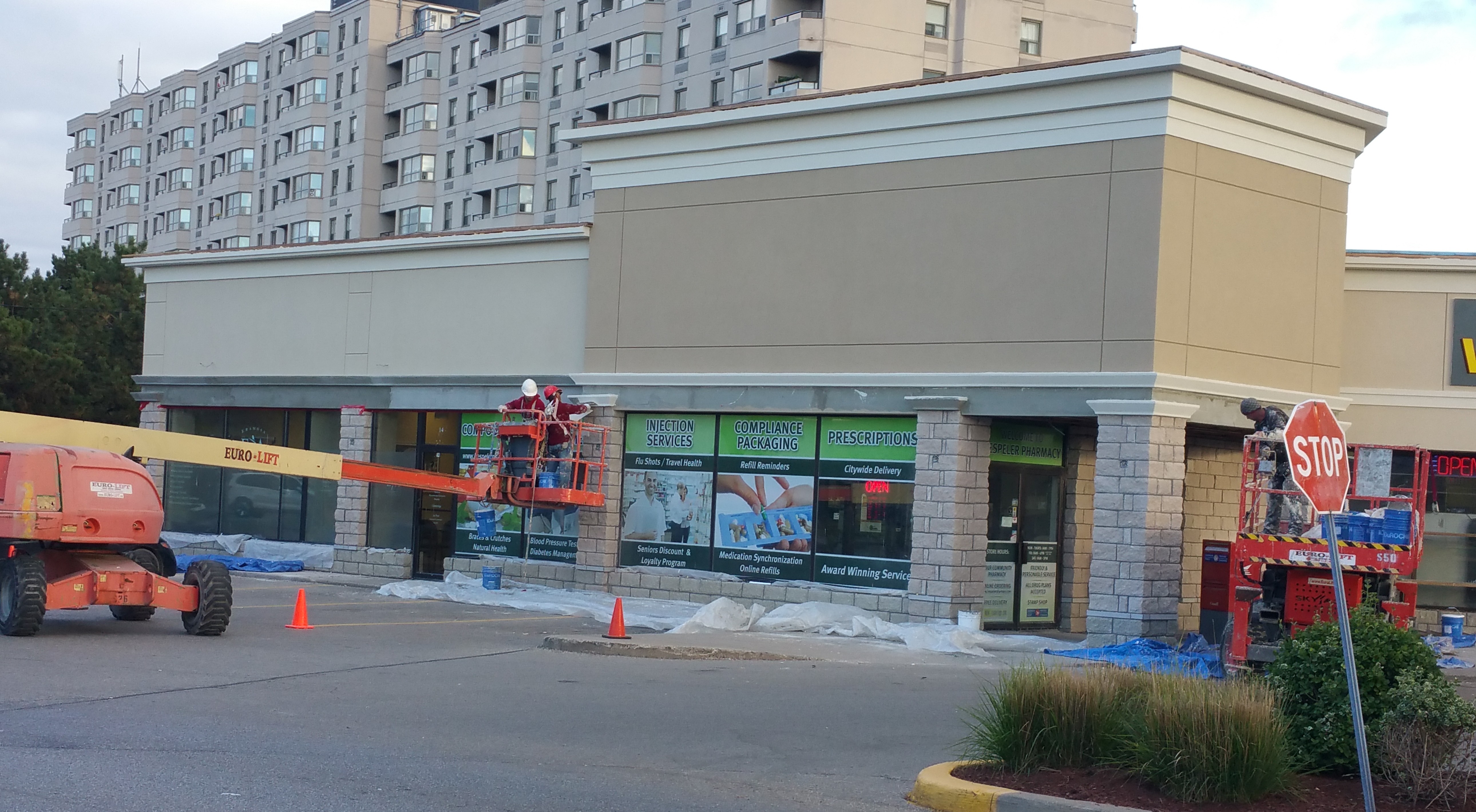

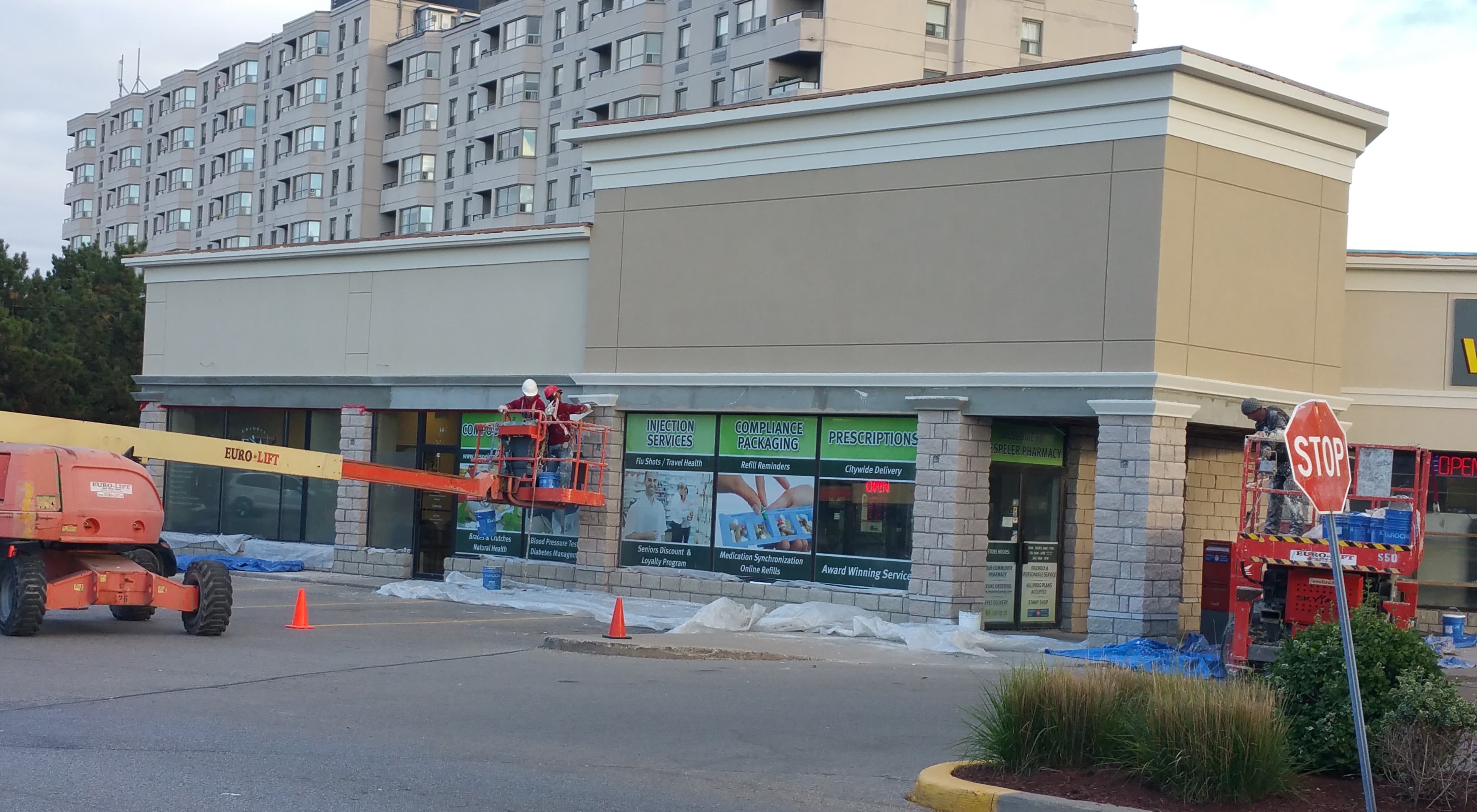

Commercial Plaza Exteriors
EIFS and exterior finish systems for retail plazas, multi-tenant properties, and commercial facades.
Custom Homes

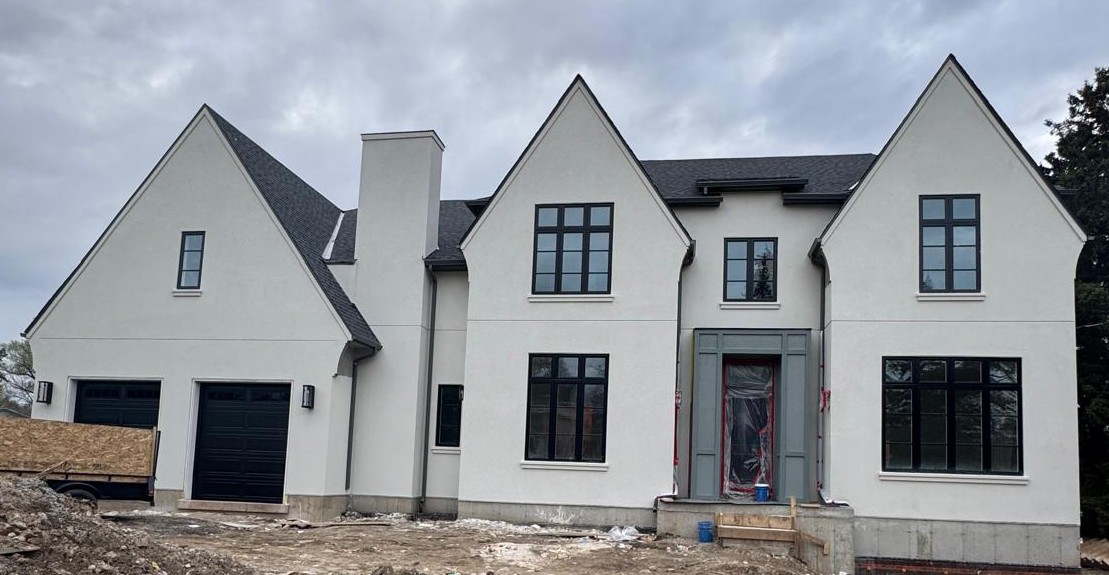

Custom Home Exteriors
Exterior insulation and finish work for new custom homes, additions, and retrofit transformations.
Auto Dealerships

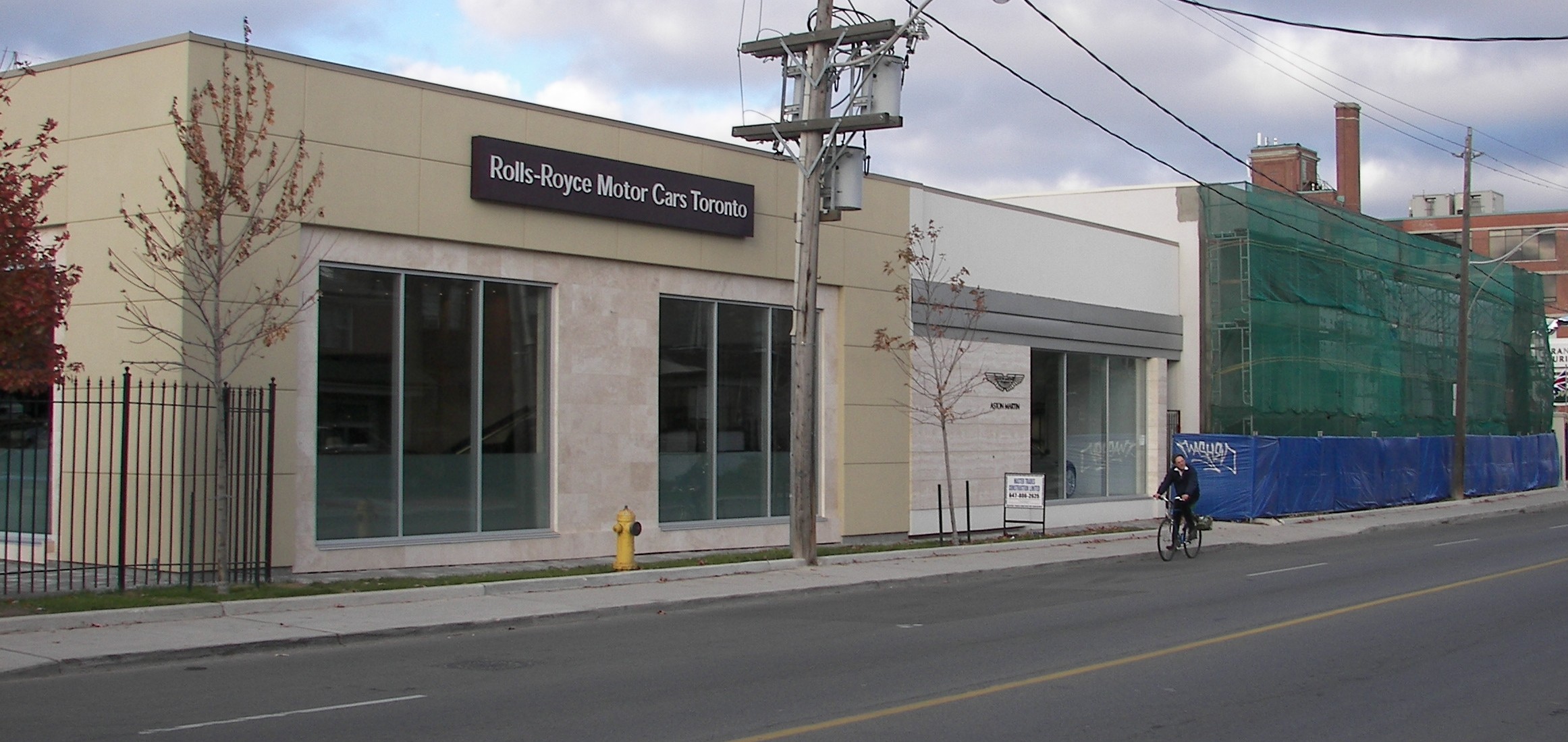

Dealership & Showroom Facades
Clean exterior systems designed for high-visibility commercial properties and customer-facing buildings.
Retirement Residences

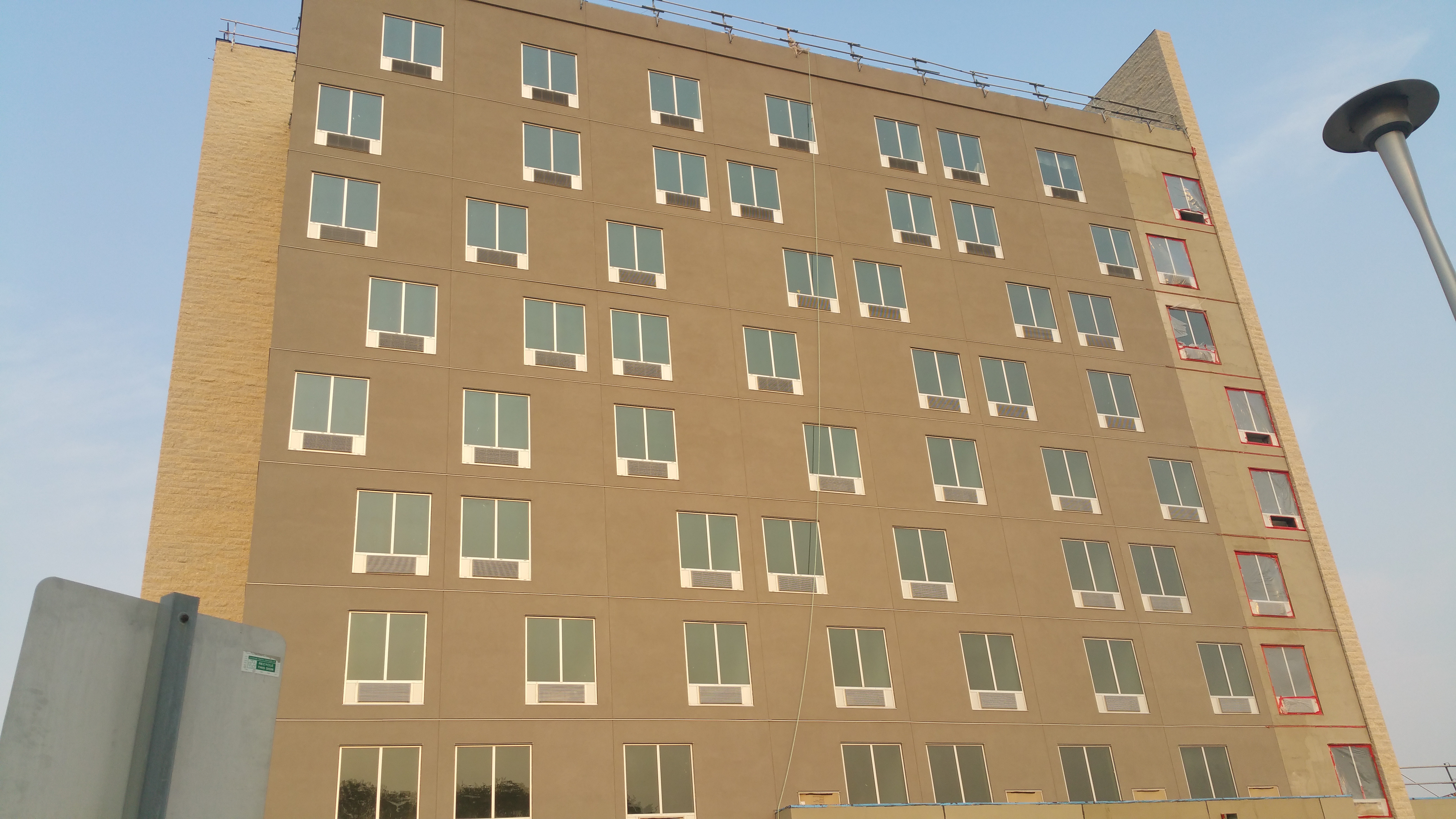

Retirement & Residential Communities
Durable exterior finishes for multi-residential, retirement, and care-related building environments.
High-Rise / Large-Scale Projects

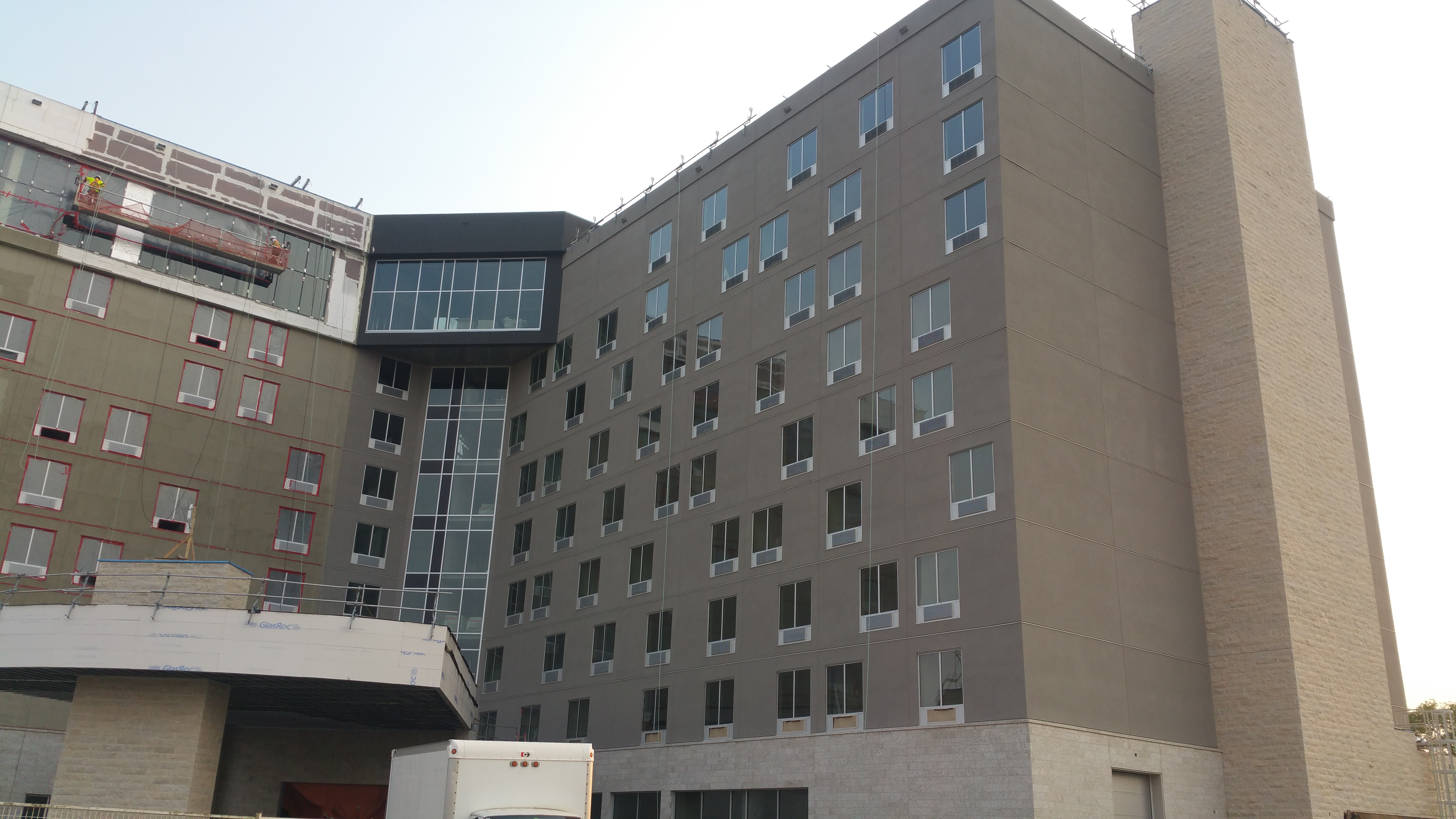

High-Rise & Institutional Work
Large-scale exterior applications requiring coordination, consistency, and professional execution.
Building Types We Serve
Custom Homes
Commercial Plazas
Auto Dealerships
Retirement Residences
Churches & Worship
Gas Stations
High-Rise Buildings
Big-Box Retail
Institutional Buildings
Mixed-Use Developments
Retrofit Conversions
New Construction
Core Services
Services That Cover Every Exterior Need
Service 01
Stucco & Acrylic Finish Systems
Service 02
EIFS Exterior Insulation Systems
Service 03
Residential Exterior Upgrades
Service 04
Commercial & Institutional Façades
Service 05
Stucco Repairs & Restoration
Service 06
Texture, Colour & Finish Options
Real Project Exterior Results
View All ProjectsCustom Home Exterior
Commercial Plaza Façade
High-Rise Exterior Finish
Professional Team
Experienced Exterior Finish Professionals
From detailed residential work to larger commercial and institutional projects, United Stucco brings practical experience, careful preparation, and professional workmanship to every project.
Residential, Commercial & Institutional Scope
Careful Prep and Detail-First Execution
Professional Crews and Clean Worksites
Durable Finishes Built for Ontario Conditions
Start Your Project
Discuss an EIFS or Exterior Cladding Project
Whether you are planning a building envelope retrofit, designing a new commercial façade, or planning EIFS for a custom home, our team is ready to review your scope and recommend the right system.
